1979 Imperial Valley-06, El Centro Array #10

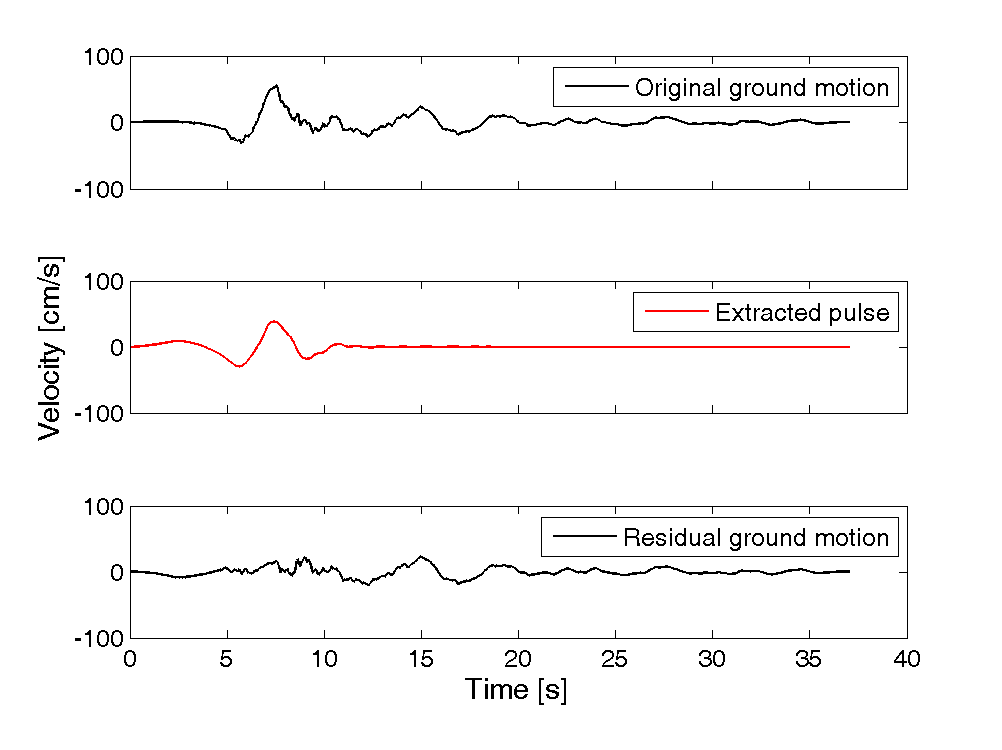

Plots of original ground motion, extracted pulse, and residual ground motion:

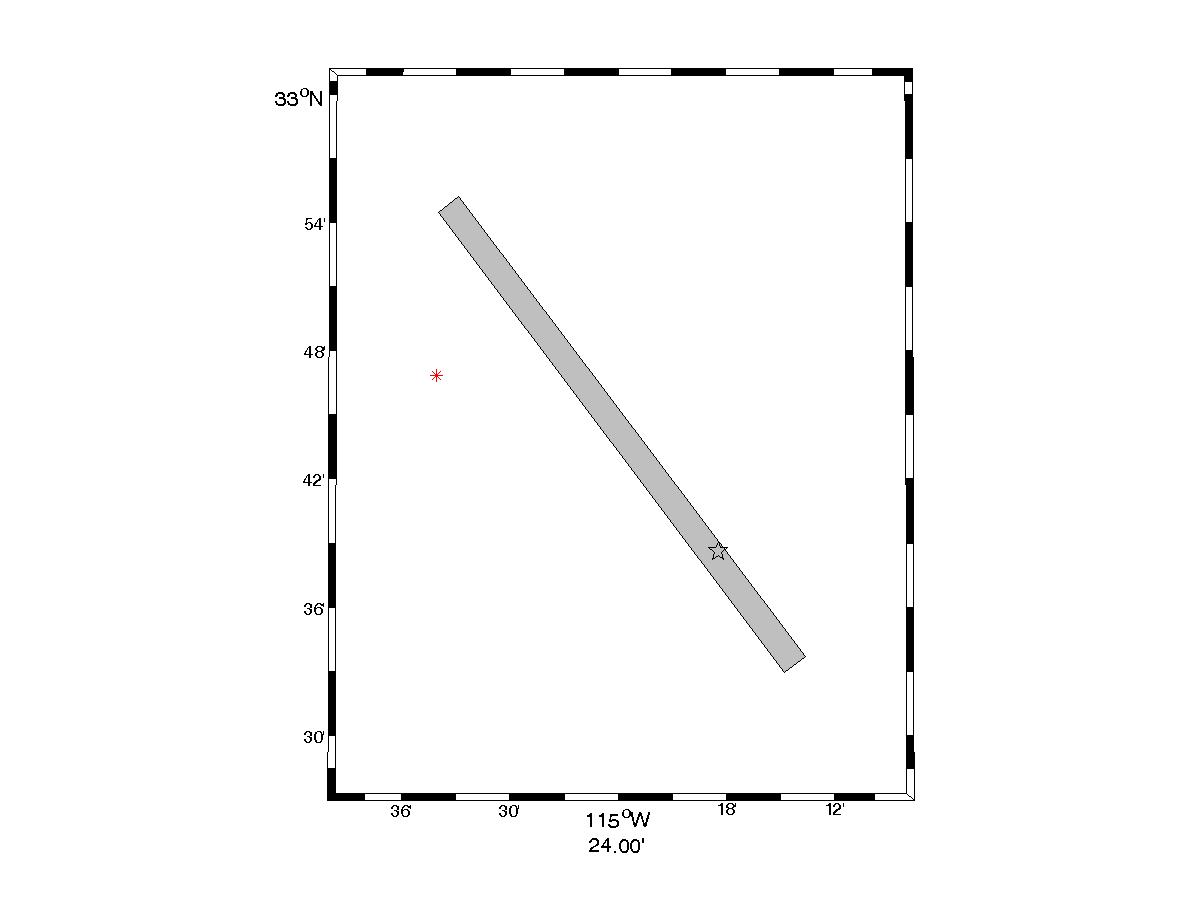

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 173

Magnitude = 6.5
Closest Distance = 8.6 km
Hypocentral Distance = 30.46 km
Vs30 = 203 m/s
Mechanism = Strike slip

Tp = 4.52 s
PGV = 55.2 cm/s

Orientation of strongest pulse, relative to north = 79 degrees
Orientation of strongest pulse, relative to fault parallel = 64 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.54
s = 26.86 km
θ = 21.1

Y = 0.78
d = 10.11 km
φ = 36.1

IDP = 1.95
Rowshandel parameter = 0.06


Notes:
