1986 Taiwan SMART1(40), SMART1 M02

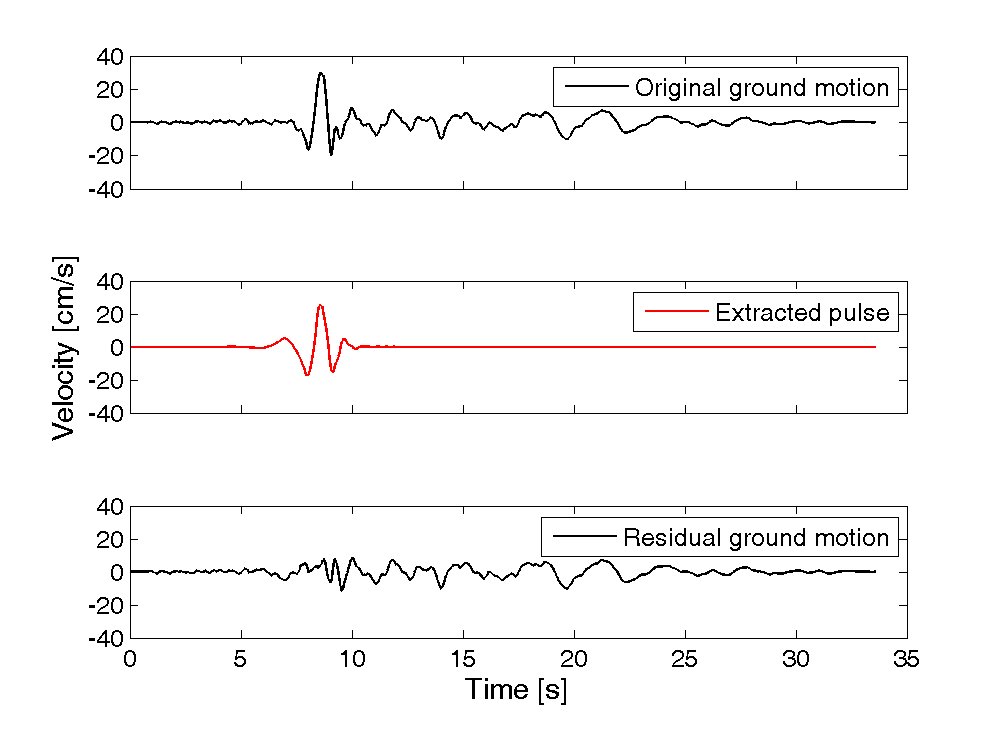

Plots of original ground motion, extracted pulse, and residual ground motion:

Map of epicenter, rupture extent and station location:

Ground motion information:

NGA Record Sequence Number 3643

Magnitude = 6.3
Closest Distance = 60.9 km
Hypocentral Distance = 70.97 km
Vs30 = 275 m/s
Mechanism = Reverse-oblique

Tp = 1.48 s
PGV = 29.7 cm/s

Orientation of strongest pulse, relative to north = 117 degrees
Orientation of strongest pulse, relative to fault parallel = 74 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 0


Comments:

Many SMART records are distant and on soft sites

Directivity parameters:


X = 0.69
s = 9.53 km
θ = 27.7

Y = 0.37
d = 4.42 km
φ = 30.9

IDP = Unknown
φ = Unknown


Notes:
