1979 Coyote Lake, Gilroy Array #3

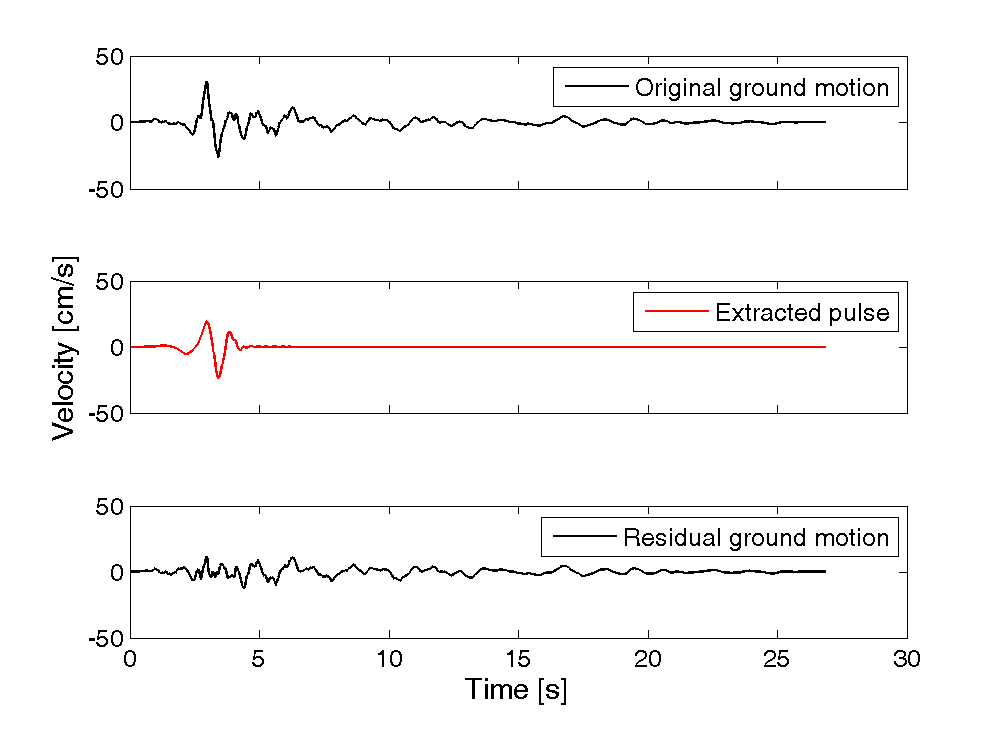

Plots of original ground motion, extracted pulse, and residual ground motion:

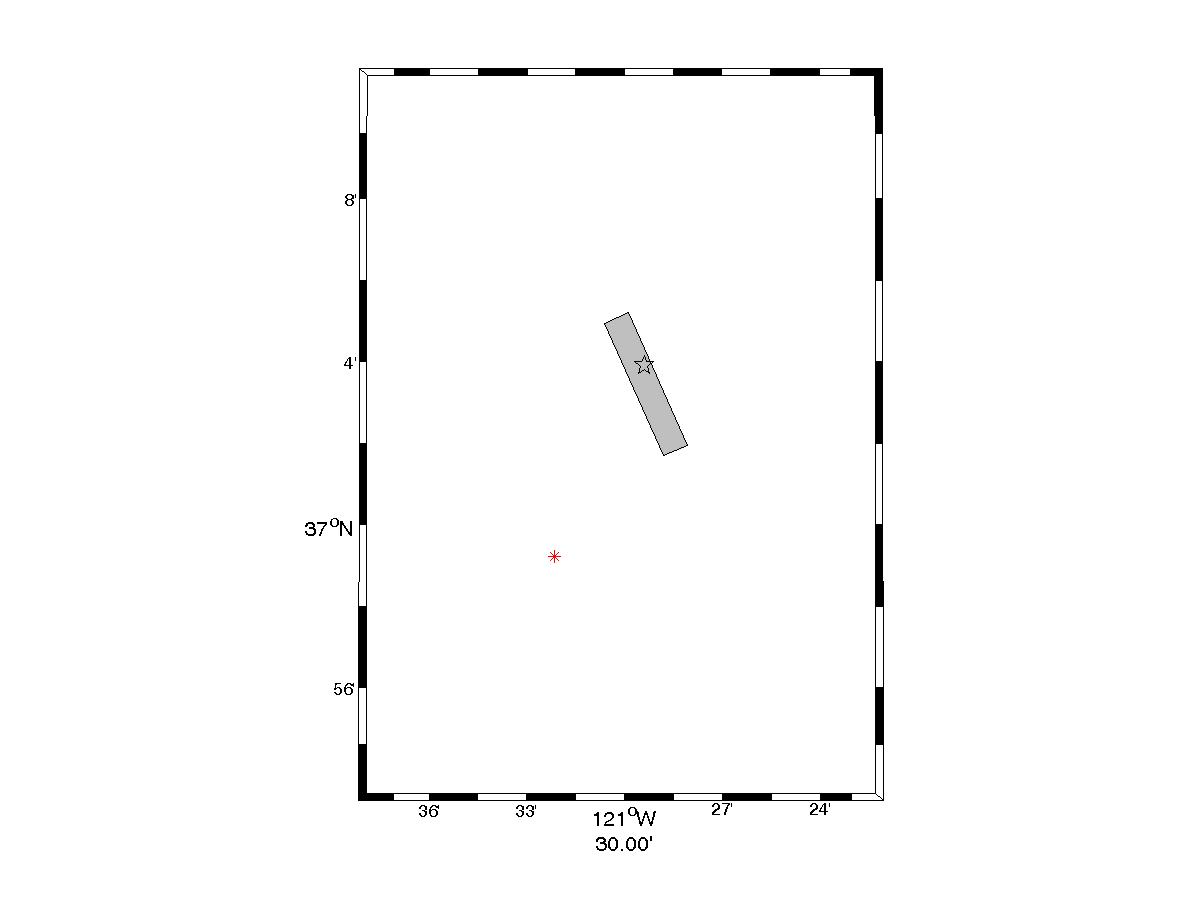

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 148

Magnitude = 5.7
Closest Distance = 7.4 km
Hypocentral Distance = 12.49 km
Vs30 = 350 m/s
Mechanism = Strike slip

Tp = 1.16 s
PGV = 30.8 cm/s

Orientation of strongest pulse, relative to north = 354 degrees
Orientation of strongest pulse, relative to fault parallel = 18 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.62
s = 4.1 km
θ = 49.2

Y = 0.71
d = 5 km
φ = 32.2

IDP = 0.67
Rowshandel parameter = 0.11


Notes:
