1989 Loma Prieta, Gilroy - Historic Bldg.

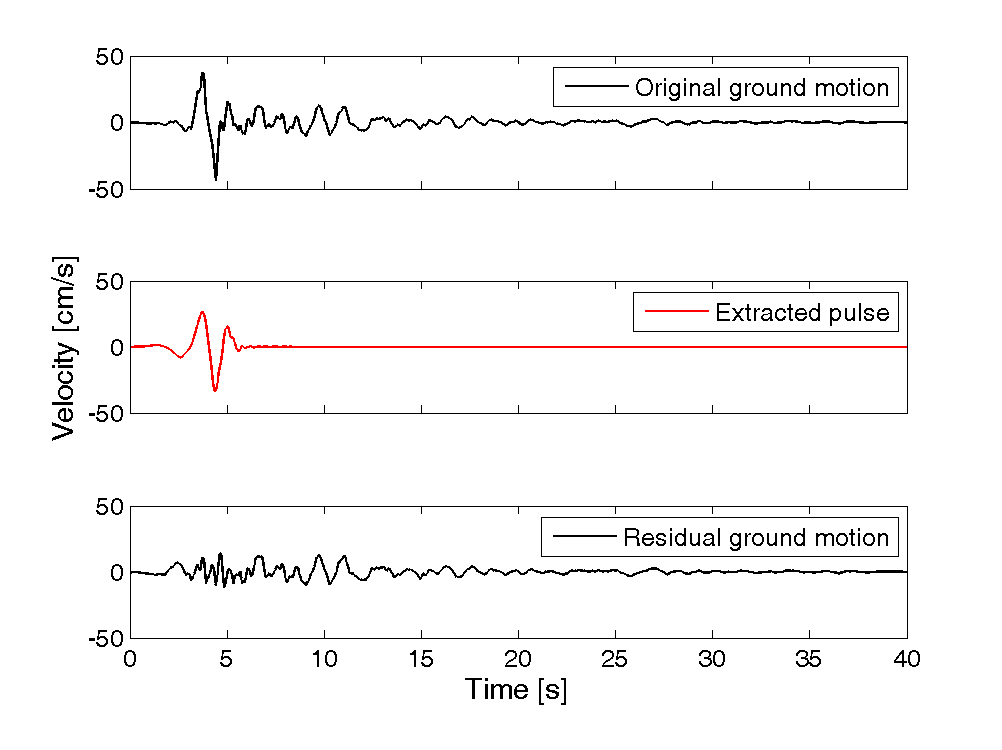

Plots of original ground motion, extracted pulse, and residual ground motion:

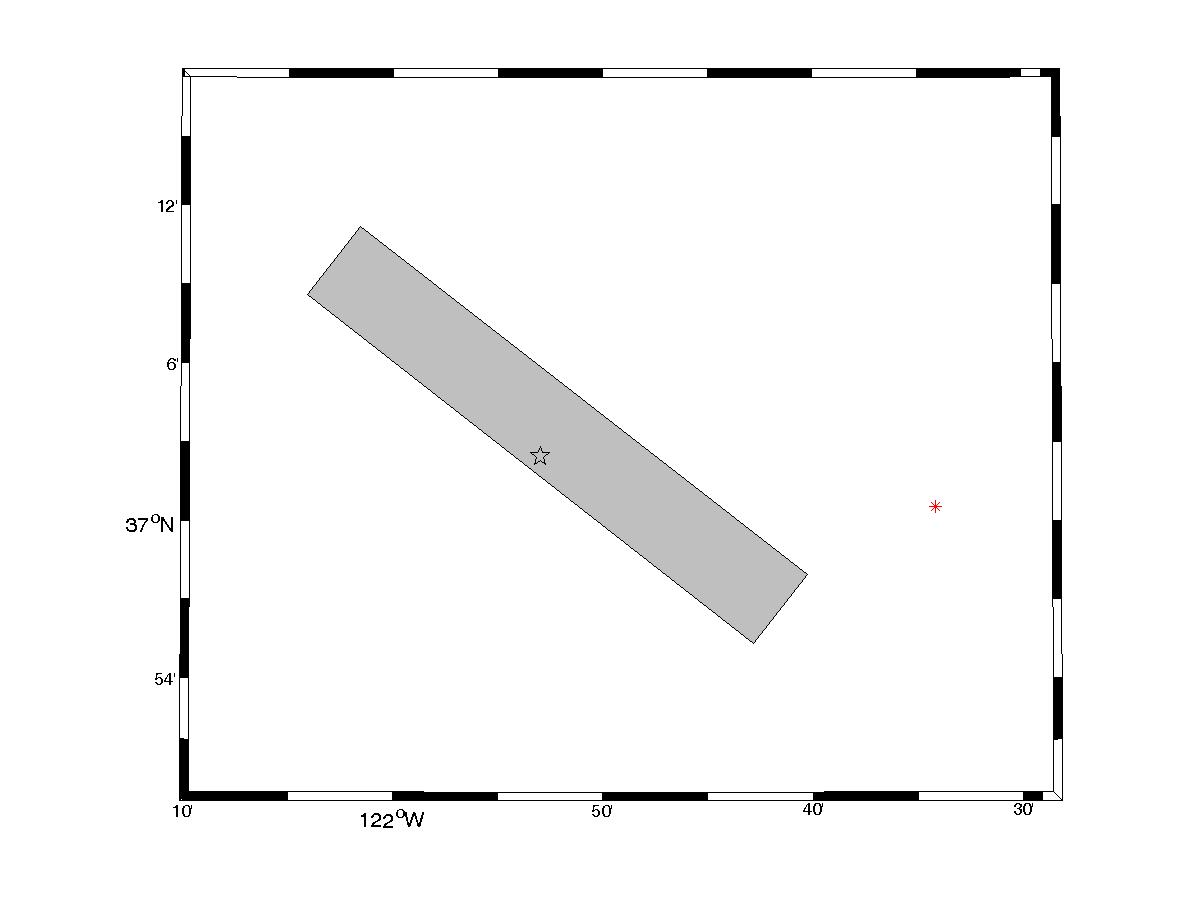

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 764

Magnitude = 6.9
Closest Distance = 11 km
Hypocentral Distance = 33.1 km
Vs30 = 387 m/s
Mechanism = Reverse-oblique

Tp = 1.64 s
PGV = 43.6 cm/s

Orientation of strongest pulse, relative to north = 147 degrees
Orientation of strongest pulse, relative to fault parallel = 19 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.5
s = 19.98 km
θ = 30.9

Y = 0.81
d = 14.53 km
φ = 19.5

IDP = 0.79
Rowshandel parameter = 0.15


Notes:
