2011 Christchurch, New Zealand, CCCC

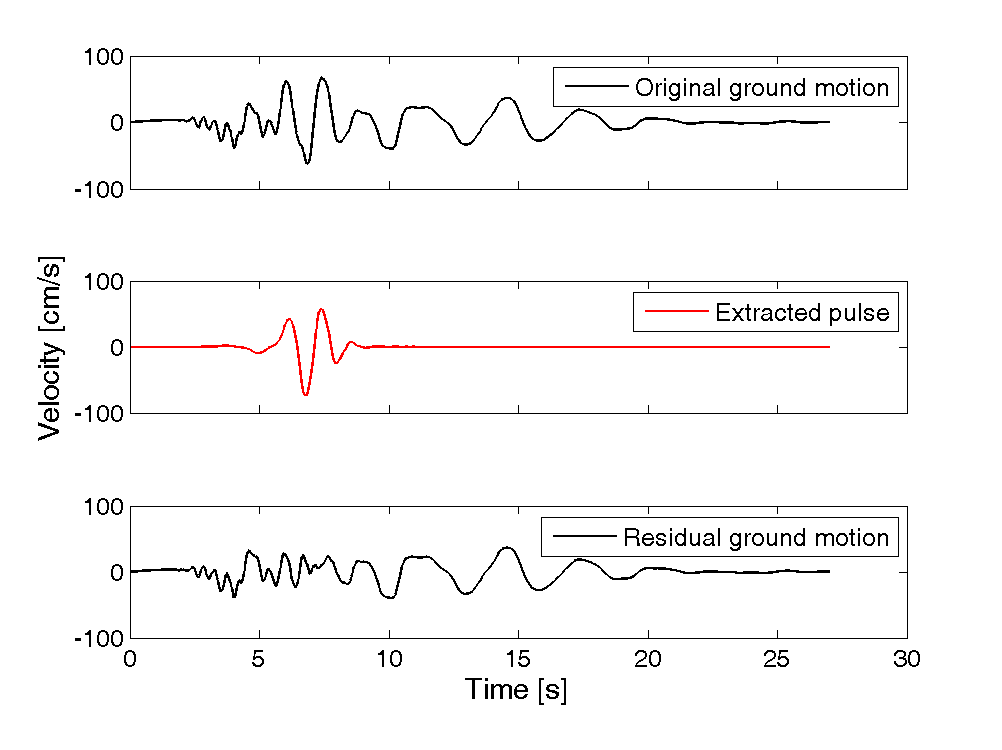

Plots of original ground motion, extracted pulse, and residual ground motion:

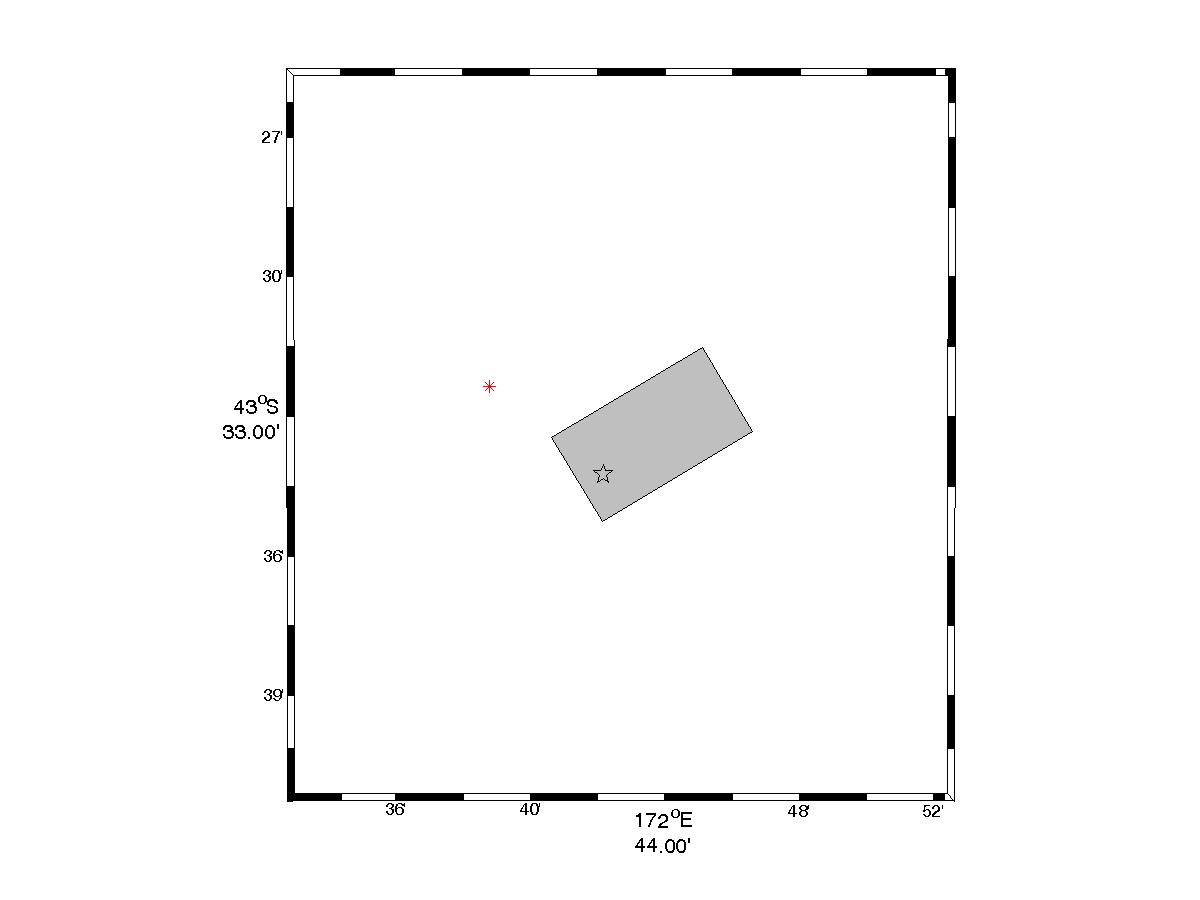

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 8064

Magnitude = 6.1
Closest Distance = 3.3 km
Hypocentral Distance = 8.31 km
Vs30 = 275 m/s
Mechanism = Reverse-oblique

Tp = 1.72 s
PGV = 66.9 cm/s

Orientation of strongest pulse, relative to north = 266 degrees
Orientation of strongest pulse, relative to fault parallel = 27 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 0


Comments:

Soft soil or basin effect. Directivity effects were most clearly seen in the fault parallel orientation for this earthquake. See Bradley and Cubrinovski(2011) for more details about this earthquake.

Directivity parameters:


X = 0.14
s = 1 km
θ = 68.5

Y = 0.6
d = 5.97 km
φ = 18.75

IDP = Unknown
φ = Unknown


Notes:
