2010 El Mayor-Cucapah, El Centro Array #12

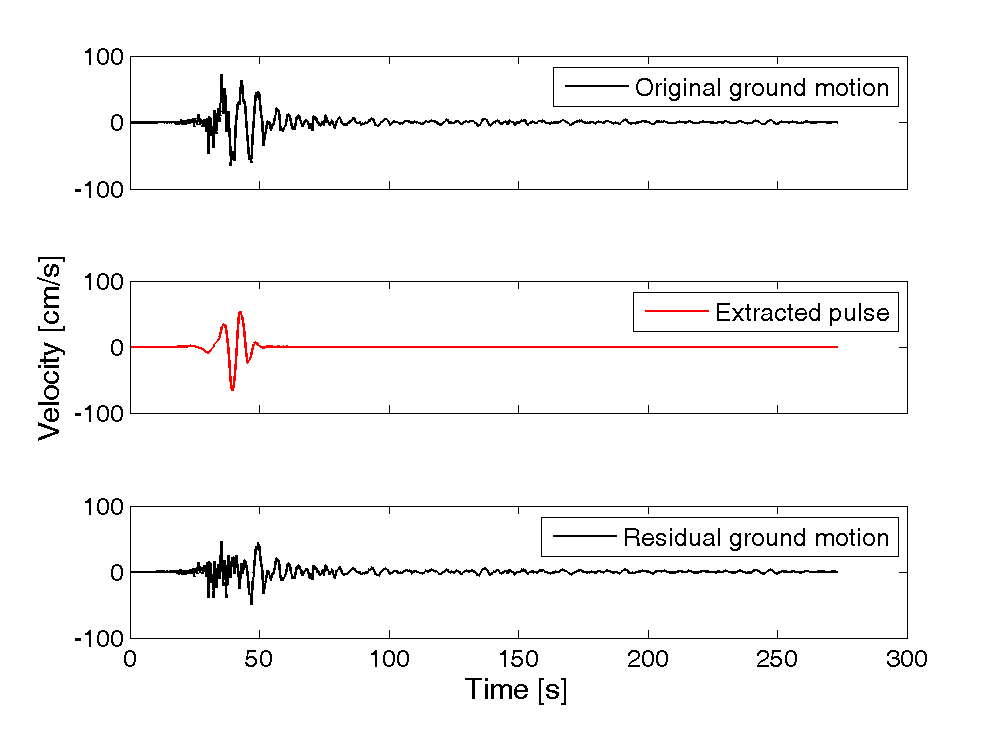

Plots of original ground motion, extracted pulse, and residual ground motion:

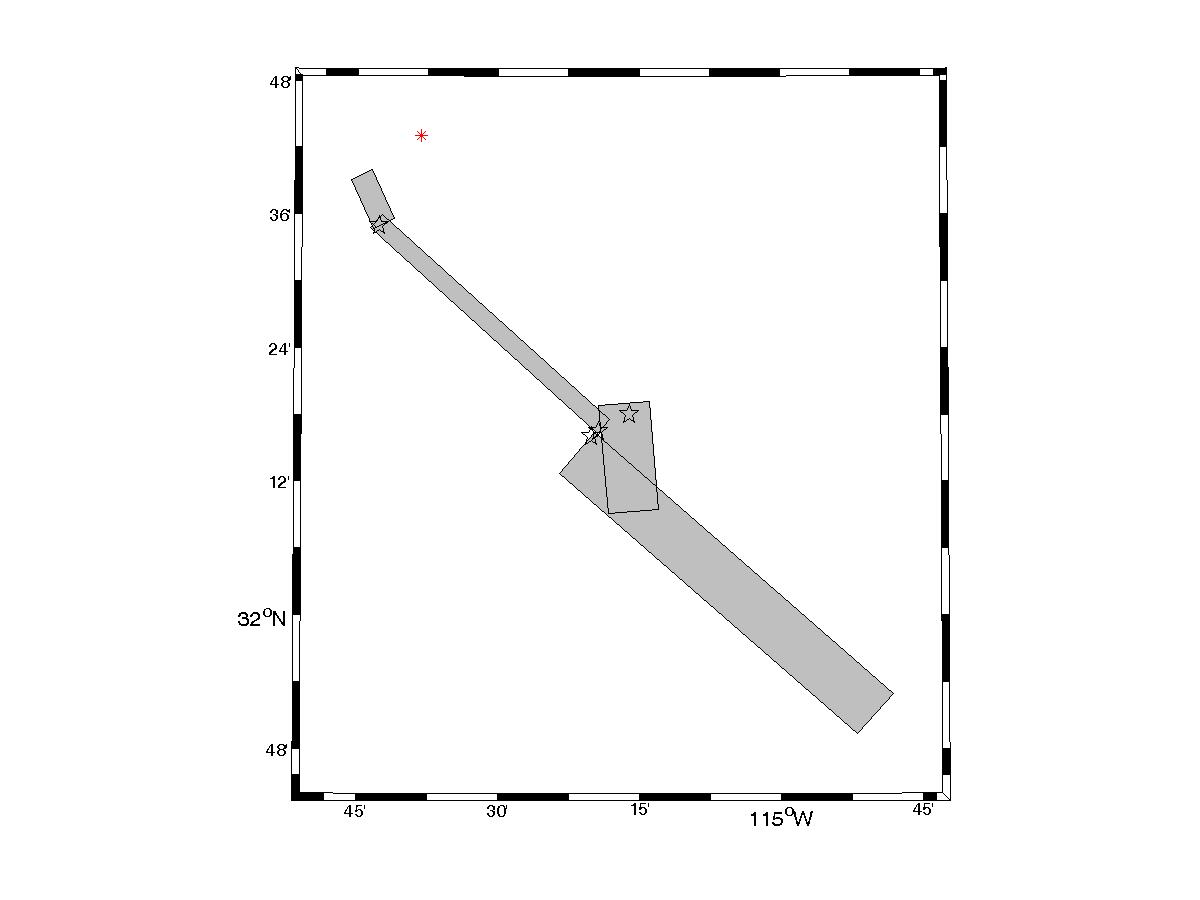

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 8161

Magnitude = 7.2
Closest Distance = 11.3 km
Hypocentral Distance = 58.3 km
Vs30 = 197 m/s
Mechanism = Strike slip

Tp = 8.72 s
PGV = 72.6 cm/s

Orientation of strongest pulse, relative to north = 83 degrees
Orientation of strongest pulse, relative to fault parallel = 48 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.43
s = 61.98 km
θ = 24.83

Y = 0.32
d = 3.86 km
φ = 52.63

IDP = 0.31
Rowshandel parameter = -0.38


Notes:
