1992 Cape Mendocino, Cape Mendocino

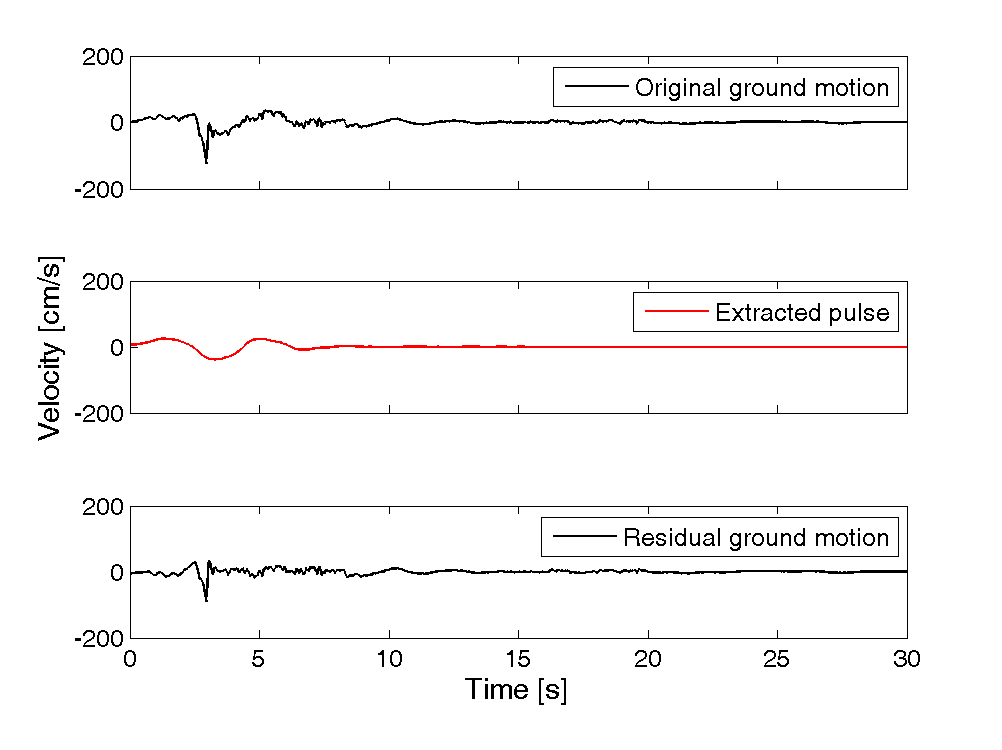

Plots of original ground motion, extracted pulse, and residual ground motion:

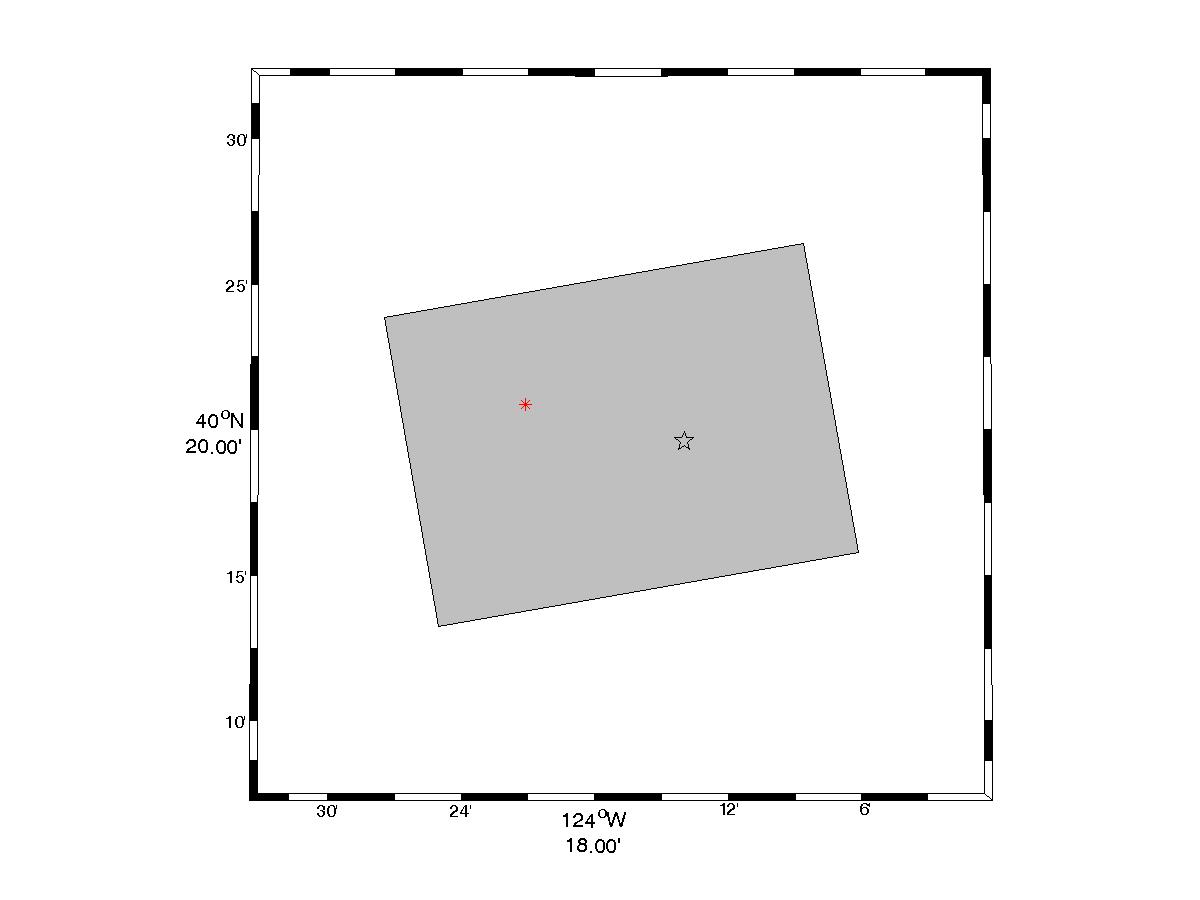

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 825

Magnitude = 7
Closest Distance = 7 km
Hypocentral Distance = 14.06 km
Vs30 = 515 m/s
Mechanism = Reverse-oblique

Tp = 4.84 s
PGV = 124.1 cm/s

Orientation of strongest pulse, relative to north = 2 degrees
Orientation of strongest pulse, relative to fault parallel = 12 degrees
Pulse in fault normal direction = 0
Pulse due to directivity = 0


Comments:

no comment

Directivity parameters:


X = 0.2
s = 4.07 km
θ = 66.9

Y = 0.41
d = 11.55 km
φ = 30.9

IDP = 0.62
Rowshandel parameter = -0.01


Notes:
