1994 Northridge-01, Jensen Filter Plant Generator

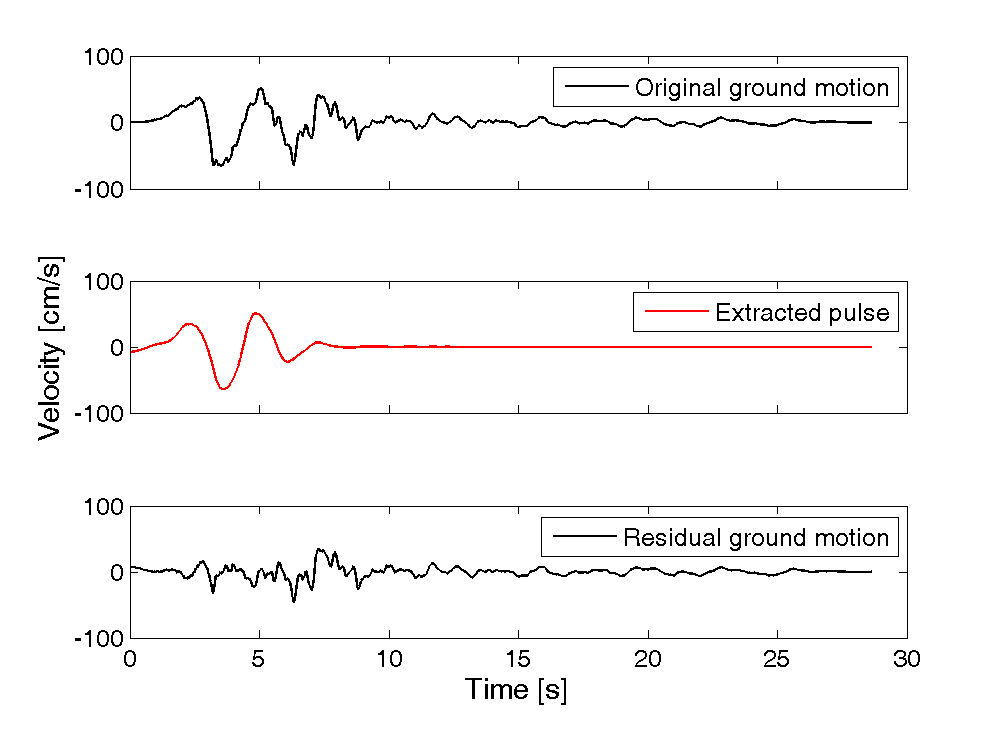

Plots of original ground motion, extracted pulse, and residual ground motion:

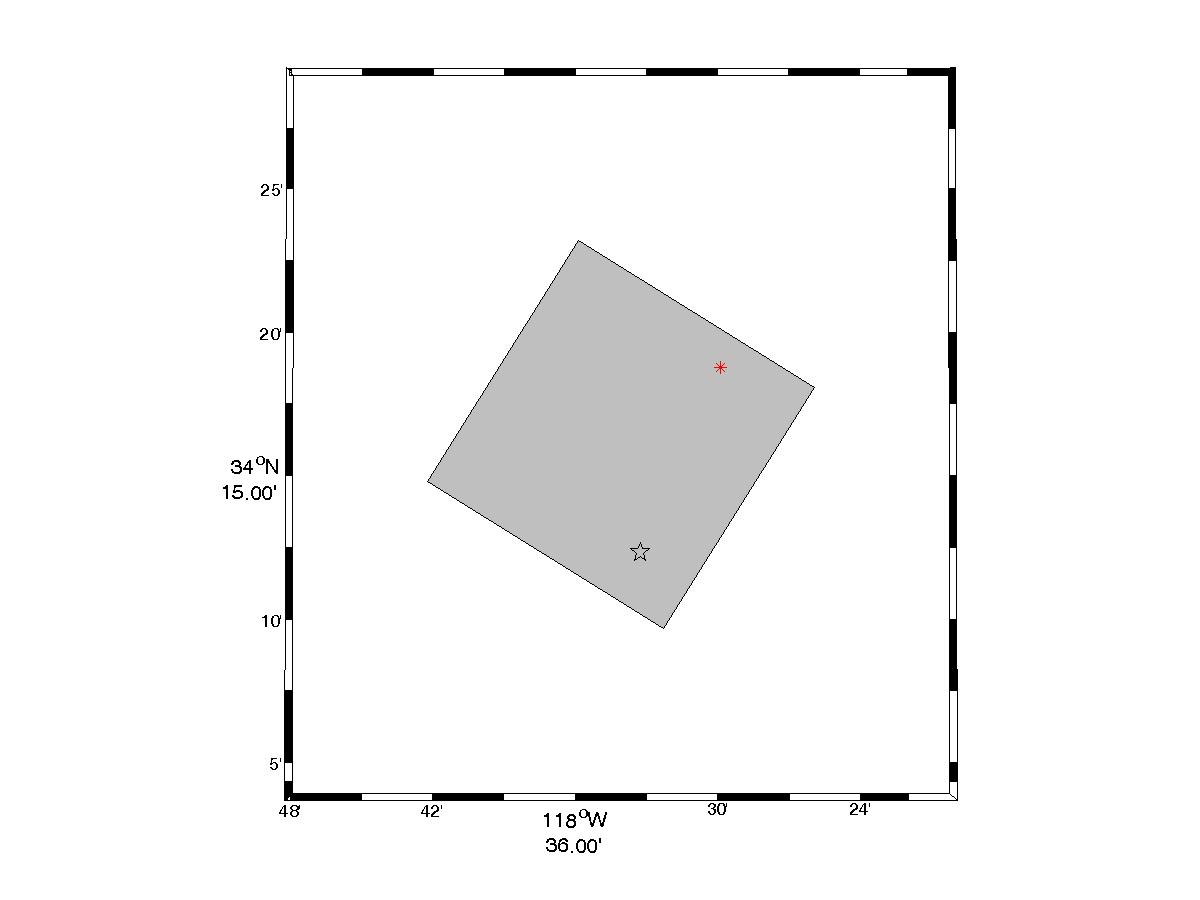

Map of epicenter, rupture extent and station location:


Ground motion information:

NGA Record Sequence Number 983

Magnitude = 6.7
Closest Distance = 5.4 km
Hypocentral Distance = 21.8 km
Vs30 = 526 m/s
Mechanism = Reverse-oblique

Tp = 3.54 s
PGV = 66.1 cm/s

Orientation of strongest pulse, relative to north = 34 degrees
Orientation of strongest pulse, relative to fault parallel = 88 degrees
Pulse in fault normal direction = 1
Pulse due to directivity = 1


Comments:

no comment

Directivity parameters:


X = 0.11
s = 1.97 km
θ = 81.3

Y = 0.81
d = 19.5 km
φ = 13.7

IDP = 2.56
Rowshandel parameter = 0.44


Notes:
